ตู้เครือข่ายออปติคัล 19U

Name

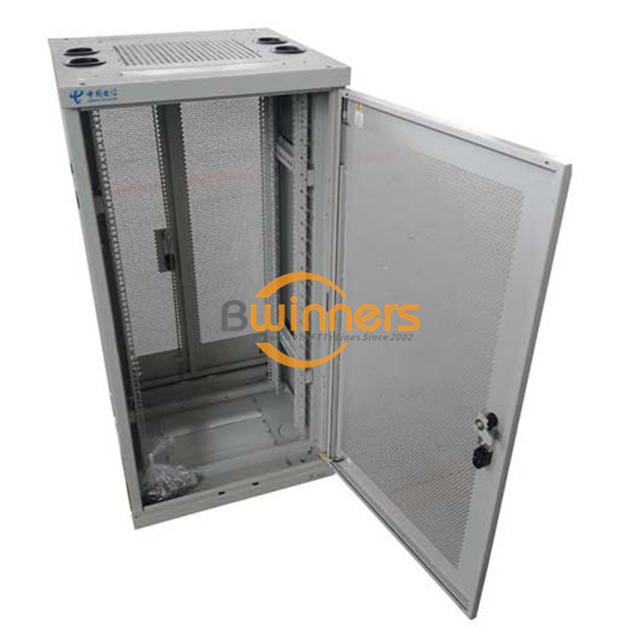

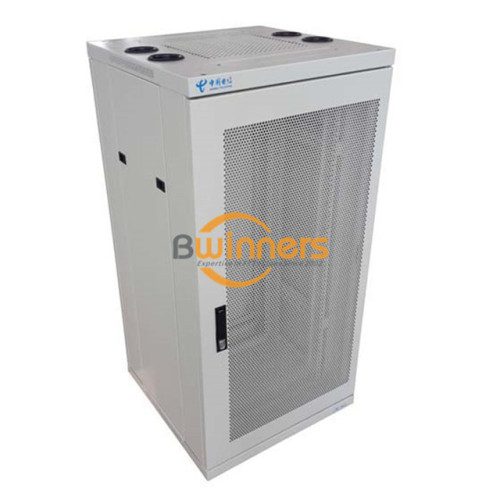

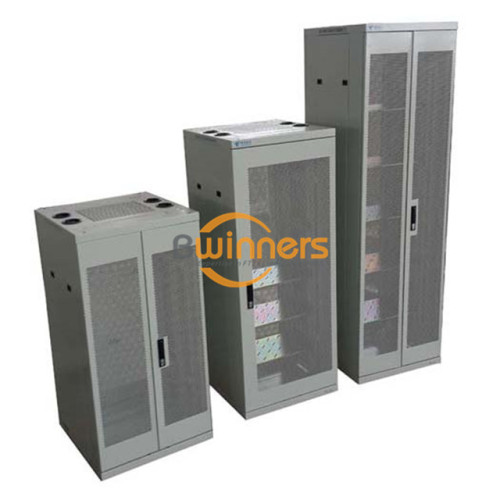

19U Optical Network Cabinet

Model

SJ-NC-8

Product Specification

18U-47U
Width: 600mm, 800mm
Depth:600mm,800mm,900mm,1000mm,1200mm

Certification

ISO9001,TLC, OHSAS 18001, ISO 14001

Cabinet Standard

19'' inch inner installation

Material

High quality SPCC cold rolled steel T:1.2-2.0mm
Enclosure: 5-fold profiled sheet steel 1.5mm
Door Plate: sheet steel 2.0mm
Rear Plate: sheet steel 1.5mm
Mounting plate: Zinc-plated 2.0mm-3.0mm

Color

Black, White or Grey (Special Color on Request)

Loading Capacity

800KGS

Installation

19'' inch inner installation

Surface Treatment

Box & Door: Phosphating, Electrostatic powder spraying in orange-peel or plain finish

Packing

(a) Film around the spare parts.
(b) EPE corner protectors in the four corners of the carton.
(c) High quality cartons with the strip.

Accessories

Cooling fan: 800mm deep or below with two fans; 800mm deep include 800mm with four fans.
PDU: A set of six universal power socket
Tray: Below 1.6m (include 1.6m) ; Below 1.6m
Screw and net: Below 1.6m (include 1.6m); Below 1.6m
Castor and support: Four M12 adjustable foot, four 2" heavy-duty casters

Comments

1. The overall dimension could be customized made by requirement.
2. The configuration of Box can be customized according to customer requirements.
