แหล่งกำเนิดแสงใยแก้วนำแสง

Optical Fiber Light Source

The fiber optic light source is characterized by stable output optical power, wavelength and spectral width with a small range of stable changes.

Provide single-mode fiber measurement (1310nm/1550nm) dual-wavelength laser output and multi-mode fiber measurement (850nm/1300nm) dual-wave length laser output, and can also provide single and multi mode (850nm/1300nm/1310nm/1550nm) four-wavelength laser output And (1310nm/1490nm/1550nm) three-wavelength laser output.

Mainly used for FTTX network and fiber optic testing. When combined with Optical power meter, it is used to measure optical power and end-to-end optical loss.

คุณสมบัติ:

2.5mm universal interface SC adapter
Output power -5dB
SM wavelength 1310nm/1550nm
SM&MM wavelength 850nm/1300nm/1310nm/1550nm
Silica gel shell protection design,2m anti-fall
MM wavelength 850nm/1300nm
PON wavelength 1310nm/1490nm/1550nm
Equipped with LED lights to facilitate work in dark environments

Wavelength（nm）: 1310+1550nm（MBN-LS-35-S)
850+1300nm（MBN-LS-35-M)
850+1300+1310+1550nm（MBN-LS-35-MS)
1310+1490+1550nm（MBN-LS-35-PON)

Output Power : -5dB
Optical connector : SC+2.5mmuniversal（1.25mm LCoptional）
Power supply: Alkaline batteries(3 AA 1.5V batteries))
Stable output : ±0.05dB/15mins; ±0.1dB/ 8H
Modulation frequency: CW, 270Hz, 1KHz, 2KHz

Volume and weight: 160x85x45mm / 220g

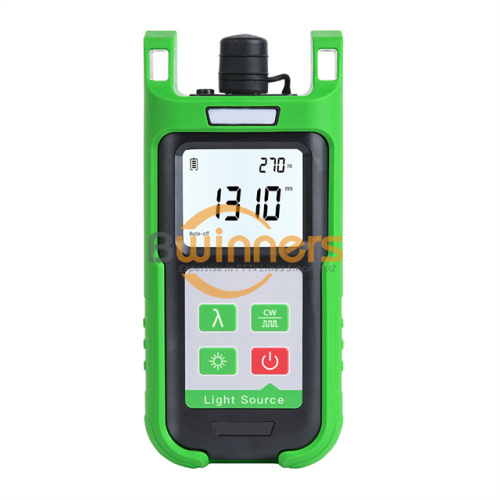

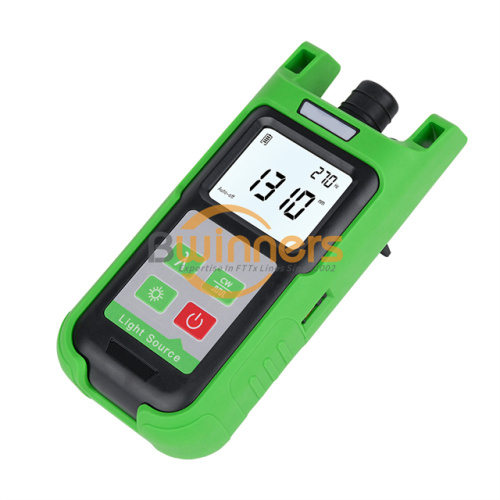

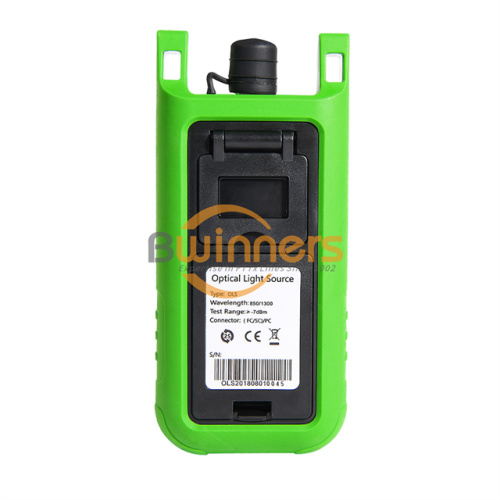

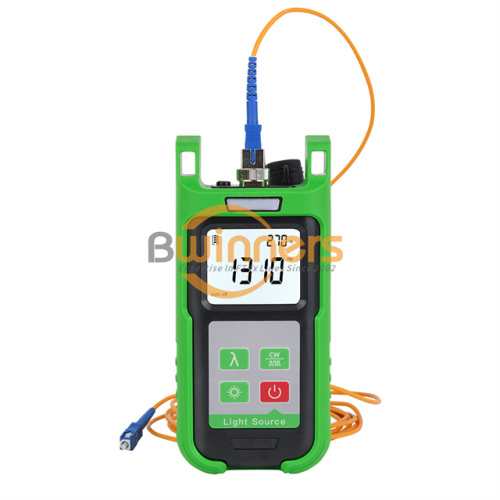

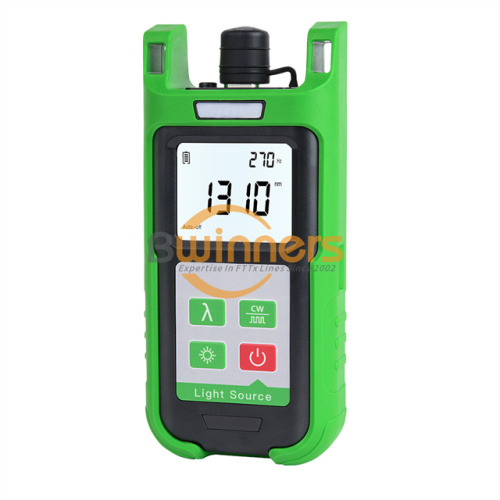

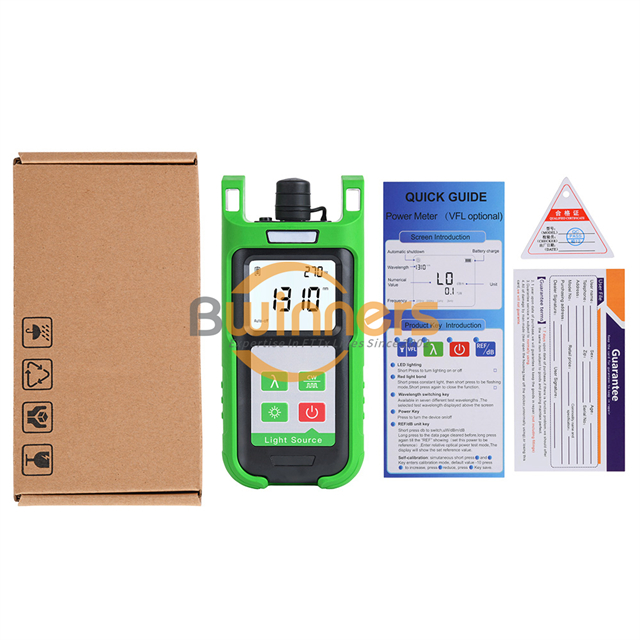

Photos of MBN-LS-35 :
