คำอธิบายผลิตภัณฑ์
คุณสมบัติของผ�...
หมายเลขรุ่น: MBN-FOHM-UPC
แบรนด์: OEM หรือ Bwinners
Cable Diameters: 0.9/2.0/3.0mm
Connector Type: Sc
Polishing: Upc
Fiber Mode: 9/125μm Singlemode
Ferrule: Ceramic
Coating Diameter: 250μm & 900μm
ความสามารถในก�...
บรรจุภัณฑ์: กล่องส่งออกมาตรฐาน
ผลผลิต: 200000sets/week
การเดินทาง: Ocean,Land,Air
สมุฏฐาน: จีน
สนับสนุน: 5000000sets/year
ใบรับรอง: ISO, Rohs
ท่าเรือ: Ningbo,Shanghai
ชนิดการชำระเงิน: T/T,PaypalT/T,Paypal
Incoterm: FOB,CFR,CIF,EXWFOB,CFR,CIF,EXW
คำอธิบายผลิตภ�...
MBN-FOHM-UPC ตัวเชื่อมต่อ Fast Type แบบฟิวชั่น SC UPC
ตัวเชื่อมต่อแบบรวดเร็ว Fusion Type SC UPC เป็น ตัวเชื่อมต่อที่ ขัดเงาไว้ล่วงหน้าจากโรงงานและสามารถติดตั้งภาคสนามได้ โดยไม่จำเป็นต้องใช้การขัดด้วยมือในภาคสนาม เทคโนโลยีการต่อประกบทางกลที่ได้รับการพิสูจน์แล้วซึ่งรับประกันการจัดตำแหน่งไฟเบอร์ที่แม่นยำ ต้นขั้วไฟเบอร์แบบตัดล่วงหน้าจากโรงงาน และเจลจับคู่ดัชนีที่เป็นเอกสิทธิ์เฉพาะที่รวมกันเพื่อนำเสนอการยุติการสูญเสียต่ำในทันทีสำหรับไฟเบอร์ออปติกแบบโหมดเดี่ยวหรือมัลติโหมด
ข้อมูลจำเพาะ:
Name |
Fusion Type Fast Connector SC UPC |
Model |
MBN-FOHM-UPC |
Connector Type |
SC |
Polishing |
UPC |
Fiber Mode |
9/125μm Singlemode |
Cable Diameters |
0.9/2.0/3.0mm |
Ferrule |
Ceramic |
Coating Diameter |
250μm & 900μm |
Operation Time |
about 15s (exclude fiber presetting) |
Insertion Loss |
≤ 0.3dB (1310nm & 1550nm) |
Return Loss |
≤ -45dB for UPC, ≤ 50dB for APC |
Reusable Times |
>5 times |
Tension Test |
≥100N |
Operating Temperature |
-40°C~+85°C |
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +/-0.5 um |

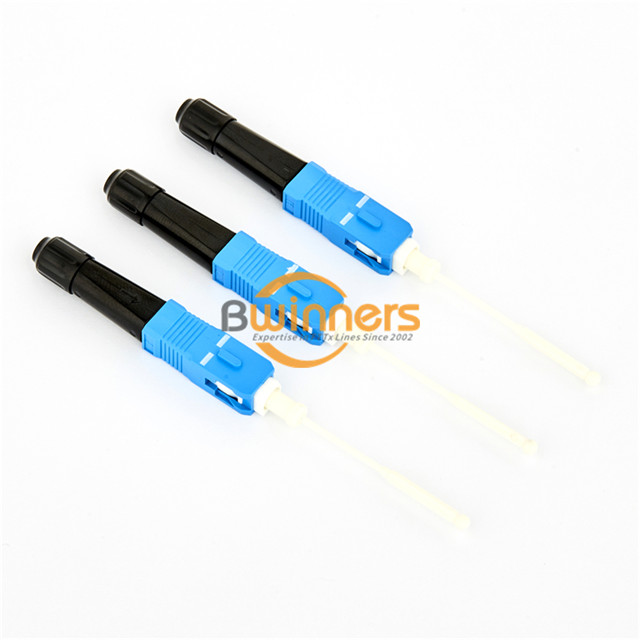

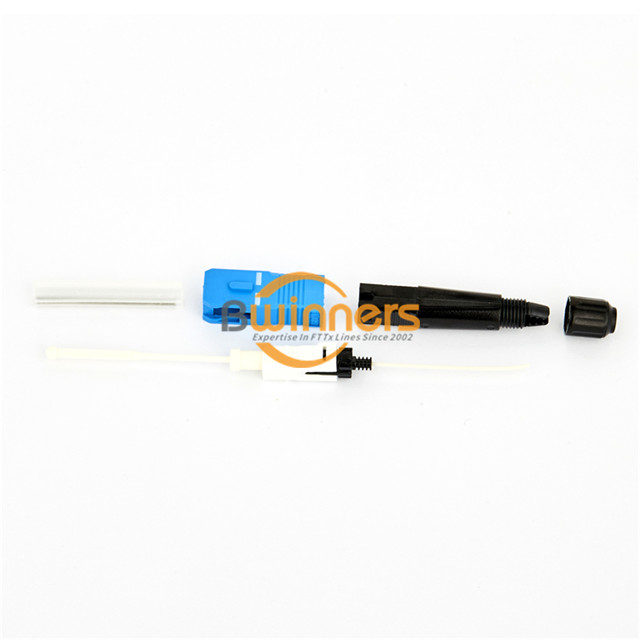

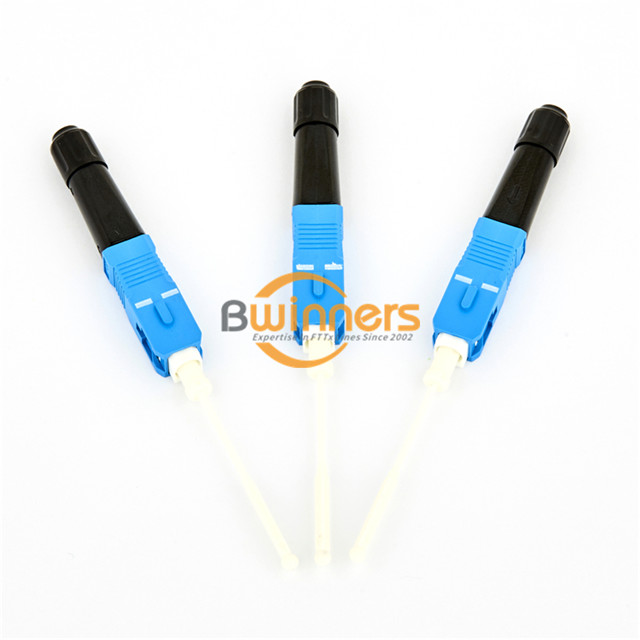

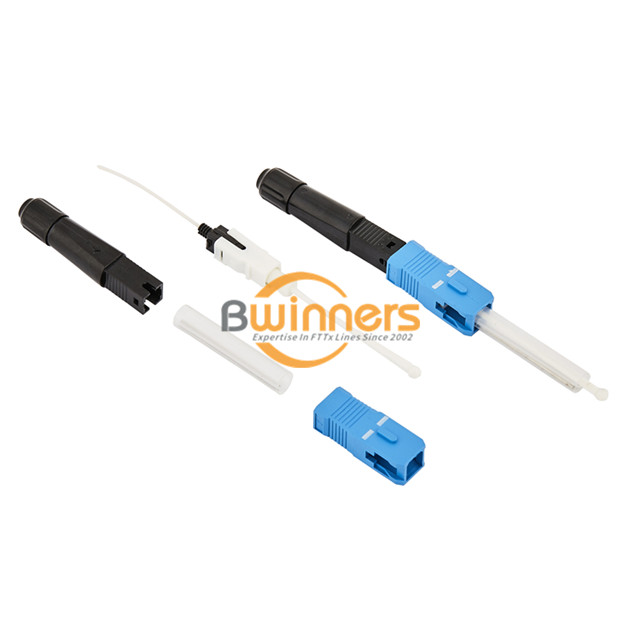

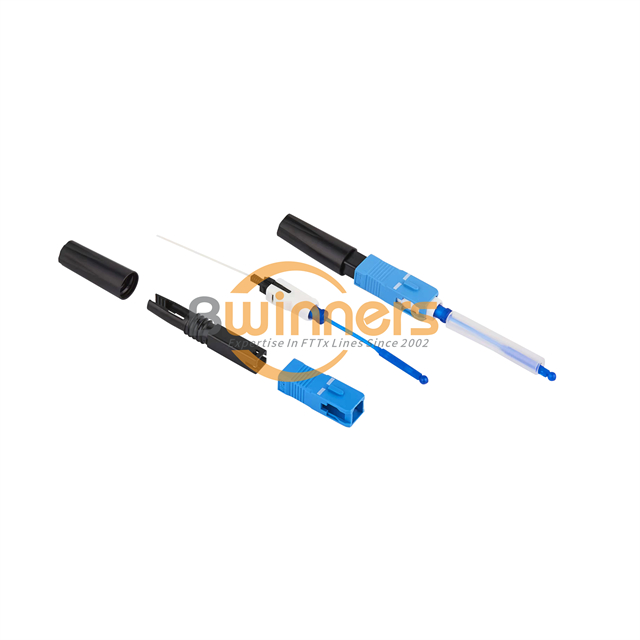

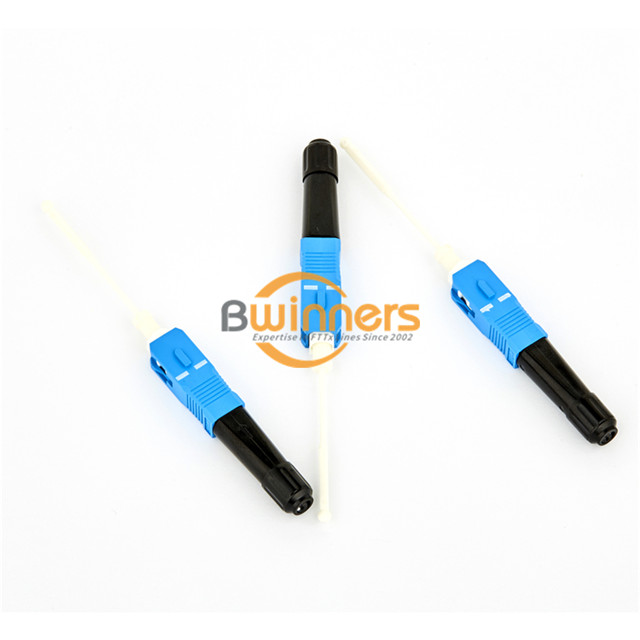

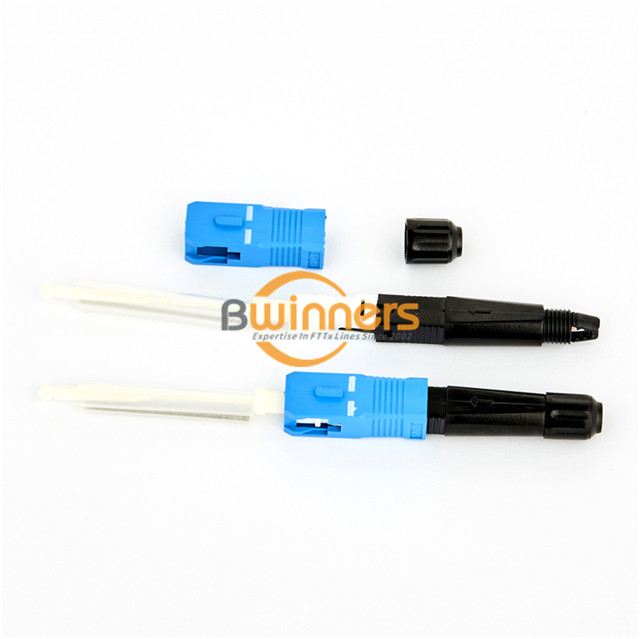

รูปภาพของ ตัวเชื่อมต่อ Fast Type แบบฟิวชั่น SC UPC :
คุณสมบัติ:
1. โซลูชันที่รวดเร็ว ง่าย และสะอาดสำหรับตัวเชื่อมต่อไฟเบอร์ออปติก
2. การจัดตำแหน่งทางกลที่แม่นยำช่วยให้สูญเสียการแทรกต่ำ
3. สามารถติดตั้งได้ภายในสองนาที รวมทั้งเวลาเตรียมการ
4. อัตราความสำเร็จสูงของการเชื่อมต่อ ประสิทธิภาพแสงที่เหนือกว่า
5. กระบวนการประกอบง่าย ใช้งานสะดวก
6. ไม่ต้องใช้อีพ็อกซี่และขัดเงา ลดเวลาในการติดตั้ง
7. ประสิทธิภาพทางแสงที่เสถียรเกิดขึ้นได้จากการใช้เทคโนโลยีการประกบแบบ V-groove mechanical splice
แอปพลิเคชัน:
1.ระบบสื่อสารใยแก้วนำแสงและเครือข่ายโทรคมนาคม
2.ไฟเบอร์ออปติกส่งข้อมูล;
3.CATV;
4.แพทช์แผง;
เครือข่ายการเข้าถึง 5.Optical;
6.Fibre to the Subscriber (FTTx) แอพพลิเคชั่น;
7.การเชื่อมต่อสายเคเบิลออปติคอล;
8. การบำรุงรักษาหรือการฟื้นฟูฉุกเฉินของเครือข่ายไฟเบอร์
9.สนามซ่อม/เปลี่ยน;
10.อุปกรณ์ไฟเบอร์ออปติก;
11.FTTx แอปพลิเคชัน
